Copper Cooling Wall and Water Jacket for Blast Furnace

Copper Cooling Wall and Water Jacket for Blast Furnace is a custom industrial component prepared for drawing-based quotation. Buyers should confirm drawings, material grade, dimensions, contact or cooling requirements, inspection scope, and the real equipment position before production.

Product Overview

Copper cooling wall and water jacket parts can be reviewed for blast furnace cooling positions where heat transfer, water-channel layout, installation fit, and maintenance access are important.

The part should be discussed together with the furnace area, shell interface, inlet and outlet position, water-channel structure, mounting details, and replacement reason.

Key Specification Fields

These fields are a first inquiry framework. Final specifications should be confirmed from drawings, samples, equipment models, and written project requirements.

Application Context

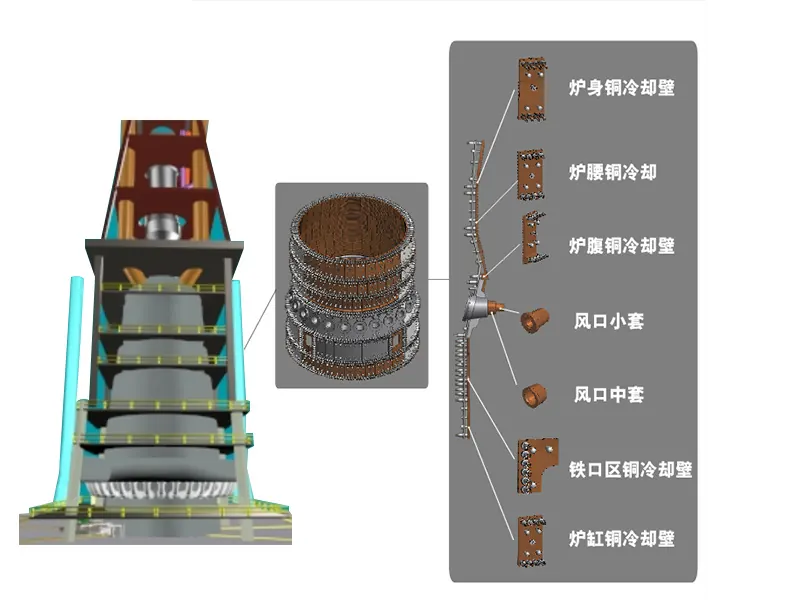

Blast furnace copper cooling walls and water jackets are commonly reviewed for furnace belly, bosh, lower stack, tuyere area, and other heat-exposed positions where the cooling structure must match the drawing and operating condition.

Because this is a custom part, the same product name may represent different material grades, machining details, cooling layouts, contact faces, or installation interfaces. The product should be discussed together with the real working position.

Material and Process Review

Material references include copper and drawing-specified copper alloys. Manufacturing can involve casting, rolling, welding, machining, or combined fabrication depending on the structure, channel design, and installation interface.

The manufacturing route should match the material, section size, hole layout, channel structure, surface requirement, and inspection scope. A clear technical review helps avoid quoting a product that does not match the site condition.

Drawing Review Points

• Overall size, thickness, diameter, length, and key tolerance requirements.
• Hole positions, grooves, contact faces, channels, weld areas, or mounting surfaces.
• Material grade, current material, or expected material direction.
• Working temperature, load, current path, cooling method, wear position, or corrosion risk.
• Equipment model, installation position, failed part photos, and replacement reason.

Inspection and Quality Control

Inspection should be connected to the function of the part. Buyers can request material confirmation, dimensional inspection, visual review, fitting confirmation, pressure or cooling checks when relevant, and packing confirmation for export transport.

If special records are required, list them in the RFQ before production. Winworthhi can review the requested scope and confirm what is practical for the drawing and order requirements.

RFQ Information

Send drawings, photos, material requirements, quantity, destination country, and the application environment. If the drawing is incomplete, include a sketch, equipment model, measured dimensions, or photos of the current part so the missing details can be reviewed.

FAQ

Can Copper Cooling Wall and Water Jacket for Blast Furnace be customized?

Yes. Customization can be reviewed according to drawings, samples, material requirements, dimensions, and working conditions.

What should be included in the first inquiry?

Include the product name, application equipment, drawing or photos, material preference, key dimensions, quantity, destination country, and any special working conditions.

Can Winworthhi recommend a material or process?

Material and process suggestions can be discussed after the application, load, temperature, cooling, wear, corrosion, or contact requirements are known.

Is this a standard stock product?

It should be treated as a custom product unless a confirmed standard drawing and inventory status are provided.
